產品介紹

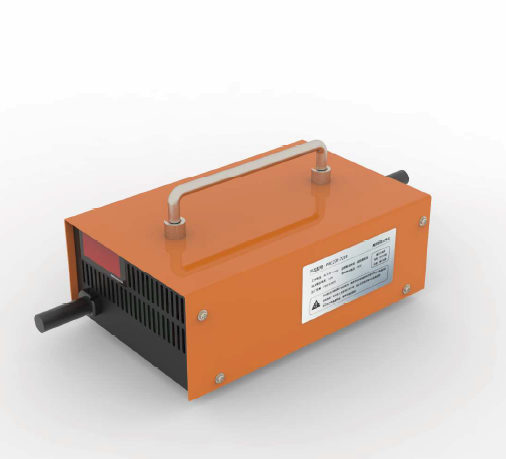

1500W PBC270系列數顯高頻諧振蓄電池充電機:
此系列充電機采用MCU智能控制方式;適用于富液鉛酸電池、免維護鉛酸電池、鋰電池、鎳氫電池、鎳鎘電池等;可用于電動掃地車、電動環衛車、電動觀光車、高爾夫球車、通訊、電力、船舶等電池組循環充電。

技術參數(Technical parameters):
? 交流輸入電壓范圍: 180-260VAC;90-260VAC(可選);45-65Hz(Ac input voltage range)
? 功率因數:≥0.98
(PFC)
? 交流輸入最大電流: 8A@220VAC
(AC max input current)
? 最高效率: 90.0% (滿載時)
(Max Efficiency)
? 噪聲:≤65dB
(Noise)
? 防護等級: IP20
(Protection grade)
? 重量: 3.0kg士0.3kg
(Net weight)
? 工作溫度: -20C-+55C (無凝霜)
(Working temperature)
? 存放溫度: -40C-+95C
(Storage temperature)
蓄電池充電機保護功能
? 輸出過流保護 Output vovercurrent protection? 輸入過流保護 Input overcurrent protection
? 輸出反接保護 Output reverse connection protection
? 輸入過壓保護 Input overvoltge protection
? 輸出短路保護 Output short circuit protection
? 輸入欠壓保護 Input undervoltage protection
? 輸出空載保護 Output no-load protection
? 充電機過溫保護 Over temperature protection
? 輸出過壓保護 Output overvoltage protection
? 充滿自動關機 Fully charge automatic shutdown
蓄電池充電機選型表格:
|
規格型號 Item |
電池組額定電壓 BatteryRatedvoltage |
最大輸出電流 Max output current |
|
PBC270-3630 |
36V |
30A |
|
PBC270-4825 |
48V |
25A |
|
PBC270-6020 |
60V |
20A |
|
PBC270-7218 |
72V |
18A |
